Chat with SQL Tables

Welcome to the Prem AI cookbook section. In this cookbook, we are going to make a simple chat application using Prem AI llama-index to ask questions in natural language to single/multiple tables from a database. This example shows one of the ways we can extend development with Prem AI. To give an excellent visualization, we use Streamlit, and here is how the final app would look:

​

Objective

This recipe aims to show developers and users how to get started with Prem’s Generative AI Platform and build different use cases around it. Through this tutorial, we also want to show how you can easily integrate Prem with existing Open Source LLM orchestration tools like llama-index. We will give you a basic understanding of how to connect data sources (like SQL database) using llama-index and then use PremAI LLMs and Embeddings to index the data and fetch meaningful results.

​

Setting up the project

Let’s start by creating a virtual environment and installing dependencies.

python3 -m venv .venv
source .venv/bin/activate

Up next, we need to install some dependencies. You can check out all the dependencies in this requirements.txt file.

Our file structure for this project will consist of two main files: db_utils.py and main.py. In the db_utils.py file, we will write all the utility functions to connect llama-index with our SQL database and the table of our choice. The main.py file contains the streamlit code to provide a nice front end.

​

Ingesting movies data into SQL table Optional

This section will create a sample SQL table using Postgres DB. We set it up locally and use this Netflix movies dataset from Kaggle. We download the dataset (a single CSV file). We load the dataset using pandas, and then we parse each row of the dataframe and insert it into our table.

​

Connecting SQL table using llama-index and PremAI

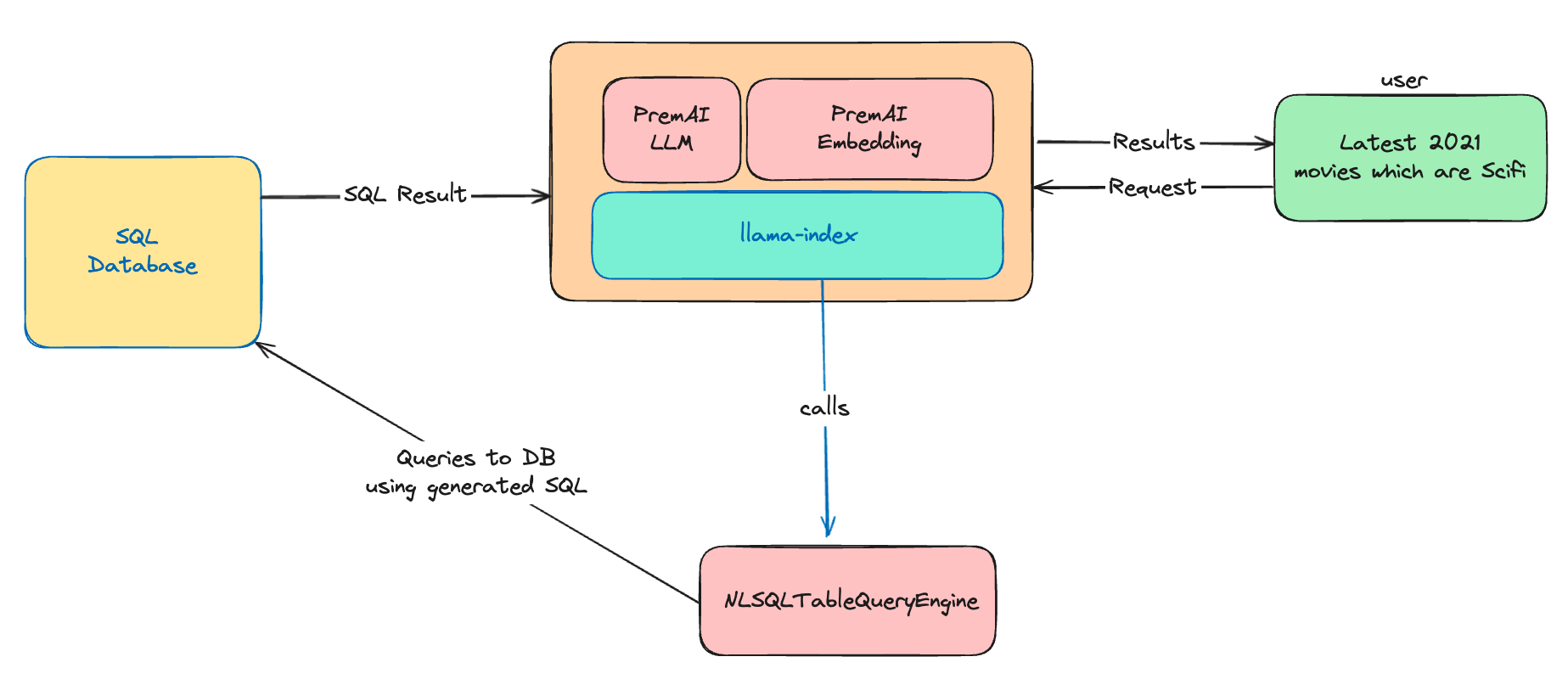

We will specifically understand some functions inside the db_utils.py file. Let’s look at the schematics to understand what is happening under the hood.

In the above figure, we can see that the user first sends a query to the LLM. The whole process is orchestrated using llama-index, which during initialization connects with the database using SQLDatabase and then builds the query engine using NLSQLTableQueryEngine. This engine is basically prompted to generate proper SQL from the table schema and its contents.

So now, once we pass the user query, it goes to the engine, gets the SQL code and then uses that to execute inside the table and then gives back the result to the LLM and that LLM then formats the result for better readability. Let’s code the approach.

from sqlalchemy import MetaData, create_engine
from llama_index.core import SQLDatabase
from llama_index.core.query_engine import NLSQLTableQueryEngine

def setup_index_before_chat(db_config: dict, table: str, ):
    # Fetch all the credential before connecting to the DB
    username = db_config["username"]
    host = db_config["host"]
    password = db_config["password"]
    port = db_config["port"]
    database = db_config["database"]

    # connect to the database
    engine = create_engine(
        f"postgresql://{username}:{password}@{host}:{port}/{database}"
    )

    # connect that database to llama-index and get the text2sql engine
    sql_database = SQLDatabase(engine=engine, include_tables=[table])
    query_engine = NLSQLTableQueryEngine(
        sql_database=sql_database,
    )
    return query_engine

Since this function is particular to our chosen table, let’s write a helper function to fetch all the table names inside our database.

from typing import Union

def get_all_tables_from_db(db_config: dict) -> Union[list, None]:
    metadata = MetaData()
    username = db_config["username"]
    host = db_config["host"]
    password = db_config["password"]
    port = db_config["port"]
    database = db_config["database"]

    try:
        engine = create_engine(
            f"postgresql://{username}:{password}@{host}:{port}/{database}"
        )
        metadata.reflect(bind=engine)
        table_names = metadata.tables.keys()
    except Exception as e:
        print(f"Error: {e}")
        return None
    return table_names

​

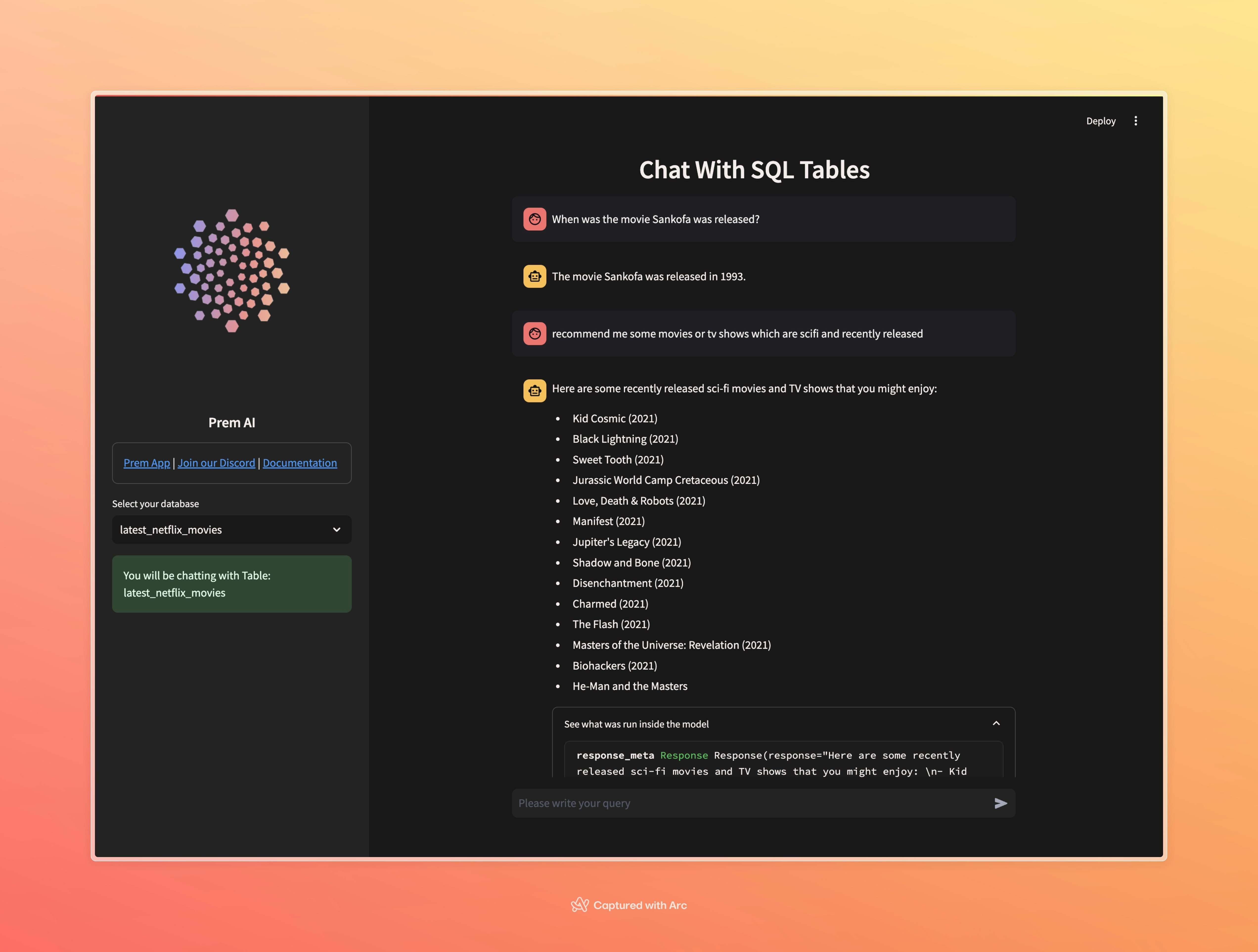

Writing a simple frontend using streamlit

Now let’s write a simple frontend using streamlit to apply a chat interface on top of this approach (use main.py file to see/edit the changes). Please make an additional .streamlit folder. Inside that folder, create a file named secrets.toml. Inside this toml file, save all the db-specific credentials. Here is an example:

premai_api_key = "xxxx-xxxx-xxxx"
premai_project_id = "xxxx"
username = "xxxxx"
password = "xxxxx"
host = "localhost"
port = "5432"
database = "xxxxx"

Now we start off by importing all the packages and setting up our database, llm and an additional embedding model (the section below shows more on how to use embedding based method).

import time
import streamlit as st
from llama_index.core import Settings
from llama_index.llms.premai import PremAI
from llama_index.embeddings.premai import PremAIEmbeddings
from db_utils import get_all_tables_from_db, setup_index_before_chat

# ---- PremAI configuration ----
premai_api_key = st.secrets.premai_api_key
premai_project_id = st.secrets.premai_project_id
embedding_model_name = "text-embedding-3-large"

# ---- Database configuration ----
username = st.secrets.username
password = st.secrets.password
host = st.secrets.host
port = st.secrets.port
dbname = st.secrets.database

db_config = {
    "username": username,
    "password": password,
    "host": host,
    "port": port,
    "database": dbname,
}

# ---- Define the LLM and Embedding model using Prem ----
llm = PremAI(
    project_id=premai_project_id, premai_api_key=premai_api_key, temperature=0.1
)
embedding_model = PremAIEmbeddings(
    project_id=premai_project_id,
    premai_api_key=premai_api_key,
    model_name=embedding_model_name,
)

Settings.llm = llm
Settings.embed_model = embedding_model

Next, we write a simple sidebar to choose which table to chat with. This is where we will require our helper function: get_all_tables_from_db.

with st.sidebar:
    options = st.selectbox(label="Select your database", options=all_tables)
    if options is None:
        st.error("No table found")
    else:
        use_all_tables = st.checkbox("Use all tables")
        st.success(f"You will be chatting with Table: {options}")

Once we get the table of interest from the user, we then connect that table using our setup_index_before_chat function.

if options is None:
    st.error(
        "Please set up the SQL DB Engine connection properly. No Tables found."
    )

else:
    query_engine = setup_index_before_chat(db_config=db_config, table=options)

On a high level, here is our overall pipeline that we want to carry out using Streamlit:

1. Get the prompt from the user, save it to a streamlit session to capture history and show the prompt in the chat UI.
2. Once got the prompt, pass it to the query_engine and get the result.
3. Stream the result and show the metadata (including the SQL query written to fetch the results for debug purposes).

if options is None:
    st.error(
        "Please set up the SQL DB Engine connection properly. No Tables found."
    )

else:
    query_engine = setup_index(
        db_config=db_config, table=options, use_all=use_all_tables
    )

    # Print all the previous messages from the user or assistant
    # if exists
    if "messages" not in st.session_state:
        st.session_state.messages = []

    for message in st.session_state.messages:
        with st.chat_message(message["role"]):
            st.markdown(message["content"])

    # Get the prompt from the user and save it to streamlit session
    if prompt := st.chat_input("Please write your query"):
        user_content = {"role": "user", "content": prompt}
        st.session_state.messages.append(user_content)
        with st.chat_message("user"):
            st.markdown(prompt)

        # Call the query_engine and get the response and the metadata
        with st.chat_message("assistant"):
            message_placeholder = st.empty()
            full_response = ""

            while not full_response:
                with st.spinner("Thinking ...."):
                    try:
                        response = query_engine.query(prompt)
                        response_str, response_meta = (
                            response.response,
                            response,
                        )
                    except Exception:
                        response_str = "Failed to respond"
                        response_meta = []

                # Stream the results
                fr = ""
                full_response = str(response_str)
                for i in full_response:
                    time.sleep(0.01)
                    fr += i
                    message_placeholder.write(fr + "▌")
                message_placeholder.write(f"{full_response}")
                with st.expander(label="See what was run inside the model"):
                    st.write(response_meta)

            # Save the assistant's previous message to streamlit session.
            st.session_state.messages.append(
                {"role": "assistant", "content": full_response}
            )

Congratulations if you made it this far. This almost concludes our recipe on how we can use Prem AI and llama-index to connect SQL and perform semantic operations like question answering with it (using the Text2SQL method). You can find the full code here.

We also have an additional section on how to use embedding-based retrieval methods to index multiple tables and chat with them. If you are further interested, you can have a look.

​

Chat with multiple SQL tables Optional

In this section, we will write an additional function to replace the existing setup_index_before_chat with a more advanced one. We will also introduce how to index multiple tables and chat with them using llama-index and Prem AI.

The workflow remains the same but with some changes.

1. We first connect to our database.
2. After this, we gather all the tables and initialize a VectorStoreIndex, which essentially maps and performs an indexing to all the available table schemas. Here, our embedding model is used to get the schema embeddings and all the metadata related to the tables.
3. When we pass a user query, it goes to the in-memory vector index to fetch all the nearest embeddings.
4. Finally, it decodes the embedded data and puts it into the LLM context to get the SQL.
5. This SQL is run inside the database to fetch proper results and then fed to another LLM in a better human-readable format.

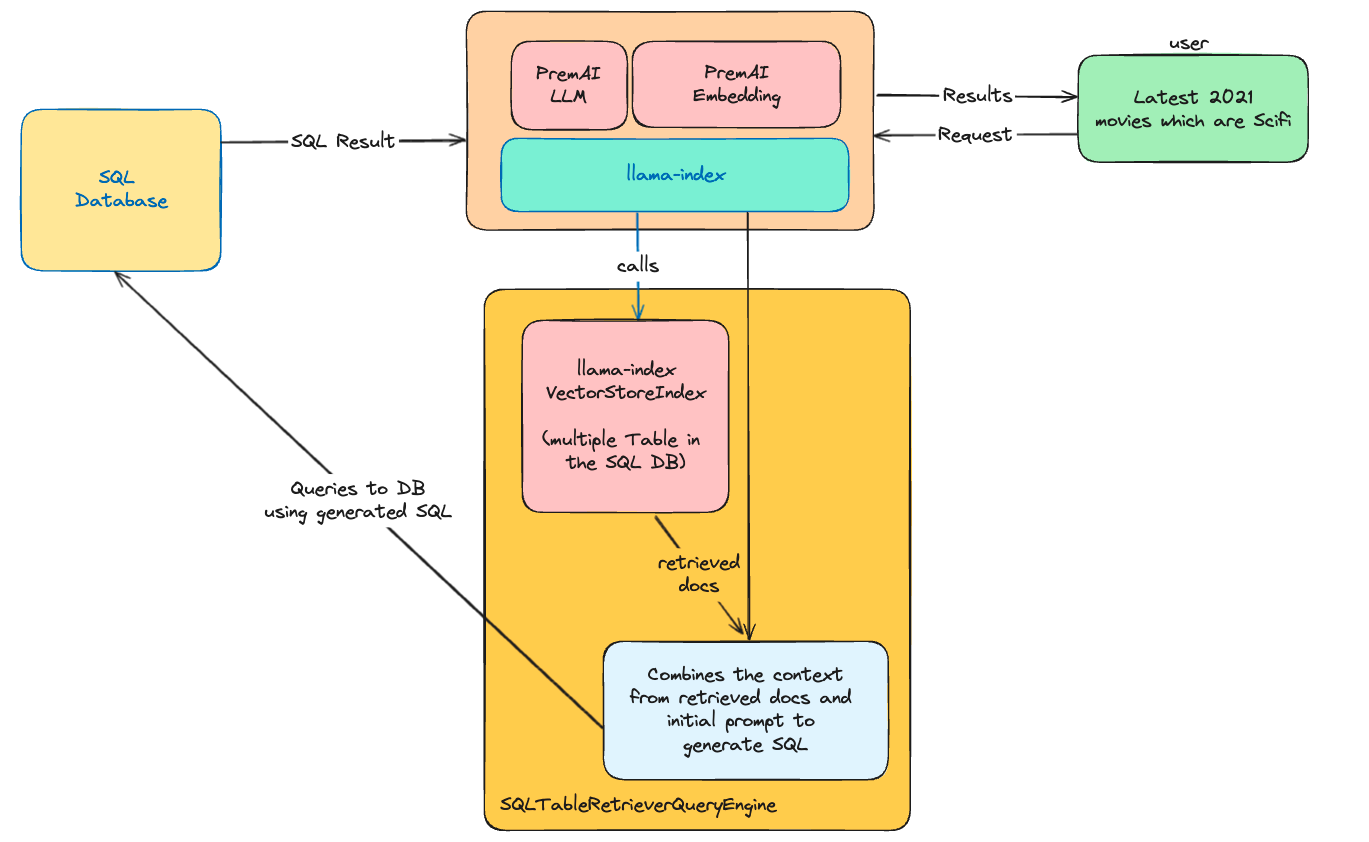

Here is the schematic diagram to understand in more detail.

Let’s code this approach.

from llama_index.core import SQLDatabase
from llama_index.core.indices.struct_store import SQLTableRetrieverQueryEngine
from llama_index.core.objects import (
    SQLTableNodeMapping,
    ObjectIndex,
    SQLTableSchema
)
from llama_index.core import VectorStoreIndex


def setup_index_before_chat_use_embedding(db_config: dict):
    username = db_config["username"]
    host = db_config["host"]
    password = db_config["password"]
    port = db_config["port"]
    database = db_config["database"]
    engine = create_engine(
        f"postgresql://{username}:{password}@{host}:{port}/{database}"
    )

    sql_database = SQLDatabase(engine=engine)
    table_node_mapping = SQLTableNodeMapping(sql_database)
    table_schema_objs = []

    all_table_names = get_all_tables_from_db(db_config)
    for table_name in all_table_names:
        table_schema_objs.append(SQLTableSchema(table_name=table_name))

    object_index = ObjectIndex.from_objects(
        table_schema_objs,
        table_node_mapping,
        VectorStoreIndex,
    )
    query_engine = SQLTableRetrieverQueryEngine(
        sql_database,
        object_index.as_retriever(similarity_top_k=1),
    )
    return query_engine

Awesome, now all we need to do is replace the setup_index_before_chat with setup_index_before_chat_use_embedding function inside main.py and then we are now able to chat with multiple tables. You can check out the full source code to run and reproduce the results and extend it to your SQL based Generative AI workflows.
